聯網型行車記錄器

聯網型行車記錄器

K165/K265

一體式7路攝影聯網型行車記錄器

K165/K265 專為車隊安全與效率而設計，是我們最先進的高度整合式 4G LTE 影像車聯網系統。系統配備前向道路與車內駕駛監控的雙高畫質鏡頭，支援最多五路額外鏡頭輸入；核心採用 Qualcomm 高階邊緣運算 AI 處理器與 Android™ 作業系統，為大型車隊提供即時洞察、快速事件偵測以及卓越的效能表現。

下載產品規格書聯絡我們

Taiwan Excellence 2025Taiwan Excellence 2024Best Choice Award

總覽

Always connected

  • Built-in 4G LTE, WiFi & Bluetooth® 5.0 BLE
  • Remote firmware & settings over-the-air (OTA)
  • Driver identification via NFC/HF RFID

Expand to 7 channels

Expand to 7 channels

  • 4-in-1 connector supports 4 extended TVI cameras for live-view & recording
  • Additional UVC camera via Mini-USB
  • Tamper-proof dual SD-card slots for up to 2TB storage

Reliable and flexible platform

Reliable and flexible platform

  • Qualcomm® QCS610 Octa-core & Android™
  • Open APIs & SDK for efficient integration with FMS solutions

Advanced fleet tracking

Advanced fleet tracking

  • Comprehensive satellite tracking
  • Automotive dead reckoning (ADR) for precise positioning even in adverse conditions (optional)
  • 3-axis G-sensor and Gyro support

Direct vehicle ECU integration

 Direct vehicle ECU integration

  • Multi-channel OBD-II & J1939 support via Smart CAN cable*

  • Vehicle & engine telematics data output for remote fleet access*

* Interface only

Real-time event detection

Real-time event detection

  • Edge AI with cloud-based VisionMax™ AI Insight Service for high-accuracy ADAS & DMS monitoring
  • Reduces risky behaviour and supports fleet compliance

功能介紹

Forward

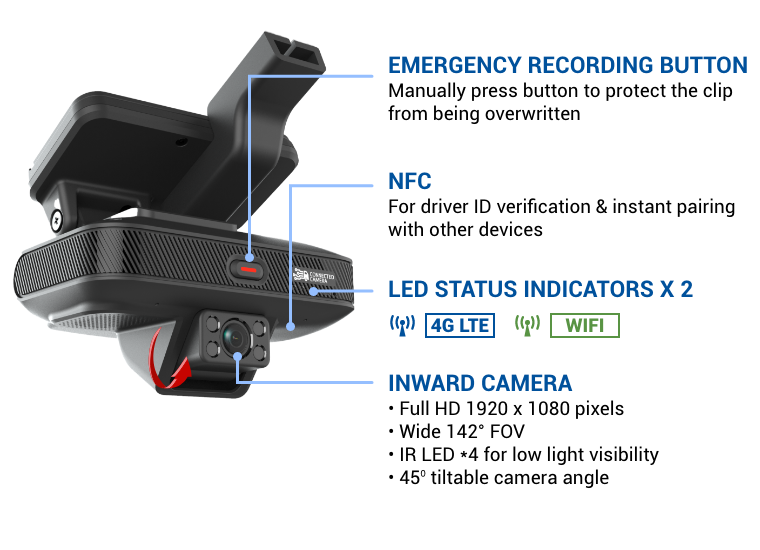

Forward Inward IO/Cover

規格

Product
K165
K265
Platform Qualcomm® QCS610 Octa Core CPU, 2+6 Kryo, 2.2GHz/ 1.8GHz
OS Android™ 10 (non GMS)
Memory 4GB RAM/32GB Internal Storage
Storage Dual Micro SD Slots (Support up to 1TB / slot)
Wireless Interface
  • IEEE 802.11 a/ b/ g/ n/ ac (2.4 GHz & 5 GHz)
  • Bluetooth® 5.0 BLE
  • Non ADR: Qualcomm® Internal GPS/ ADR: U-Blox NEO-M8L
  • LTE Cat. 4
NFC NFC: MiFare®, FeliCa | RFID (HF): ISO14443A&B, ISO15693
Camera
  • Forward: FOV: D 142.8°/ H 120.4°/ V 63.8° (±5%)
  • Full HD 1920 x 1080 @ 30 fps (configurable)
  • Forward: FOV: D 142.8°/ H 120.4°/ V 63.8° (±5%)
  • Full HD 1920 x 1080 @ 30 fps (configurable)
  • Inward (IR): FOV: D 142.8°/ H 120.4°/ V 63.8° (±5%)
  • Full HD 1920 x 1080 @ 30 fps (configurable)
Expandible Cameras TVI x 4, USB x 1
Physical Interface
  • Dual Micro SD Slots (Support up to 1TB /Slot)
  • Nano SIM Slot (SIM 1) and eSIM** (SIM 2)
  • Mini USB x 1 (for Ext. Cameras), USB Type C x 1 (for de-bug)
  • Build-in microphone x 2
  • Build-in Speaker x 1
Buttons Emergency recording button for driver to manually trigger 60s recording (5 ˜ 30s before and 5 ˜ 30s after, adjustable)
Environment
  • -20°C to +60°C (-40°F to +140°F) Operating Temperature
  • -20°C to +70°C (-40°F to +158°F) Operating Temperature (Under Certain Conditions)
  • -30°C to +85°C (-22°F to +185°F) Storage Temperature
Certification* CE,CB, FCC/IC, UKCA, RCM, BQB, PTCRB, AT&T, Verizon, T-Mobile, WEEE, ROHS
Dimensions 124 x 88.6 x 72mm ( 4.88 x 3.48 x 2.8'') 124 x 88.6 x 101mm ( 4.88 x 3.48 x 3.97'')
Remark *Region Dependent, **Optional

配件

外接鏡頭
外接鏡頭

需另外購買

外接鏡頭
外接鏡頭

需另外購買

改良式供電車載資料傳輸接頭
改良式供電車載資料傳輸接頭

需另外購買

遠端手動錄影觸發按鈕
遠端手動錄影觸發按鈕

需另外購買

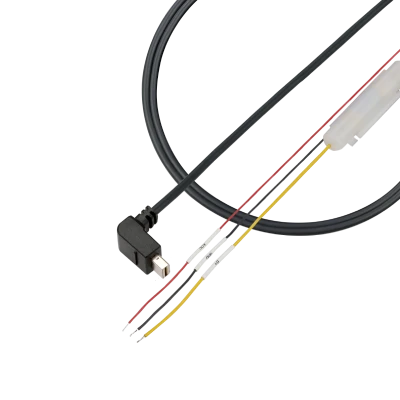

電源線 (含ACC訊號)
電源線 (含ACC訊號)

需另外購買

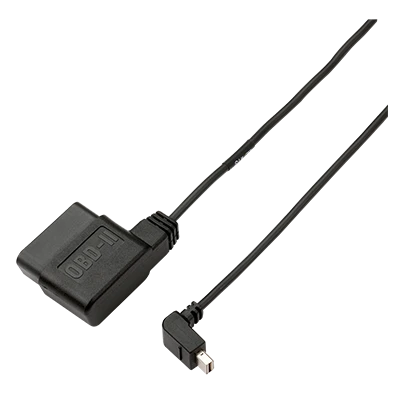

OBD電源供應線
OBD電源供應線

標準配件

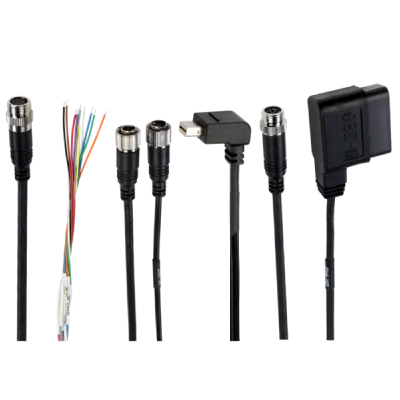

全功能線 (含所有功能訊號與電源)
全功能線 (含所有功能訊號與電源)

需另外購買

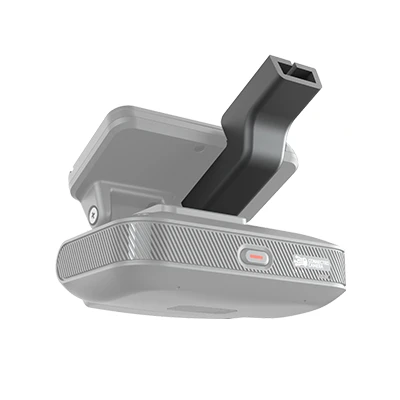

集線套
集線套

需另外購買

下載配件規格書
